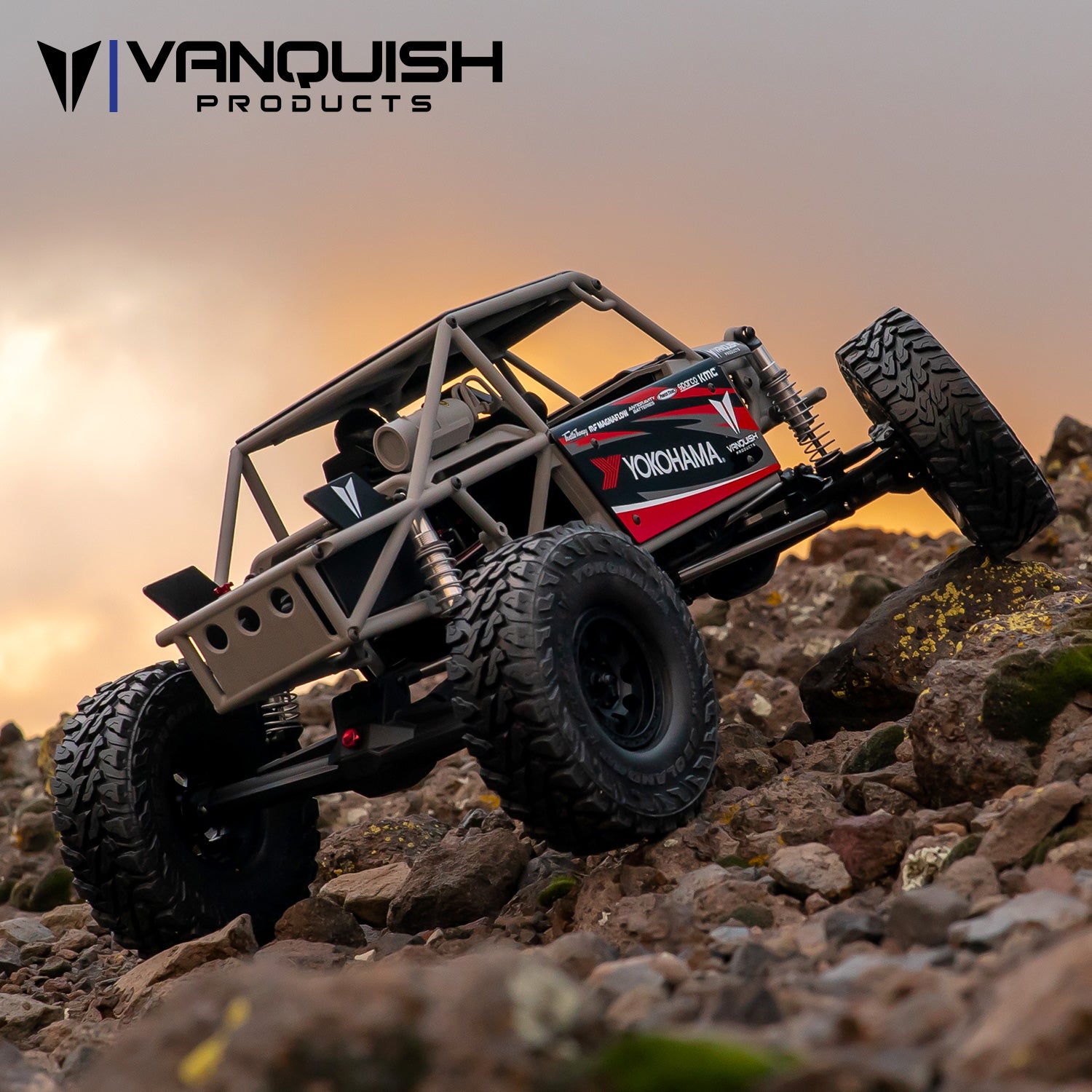

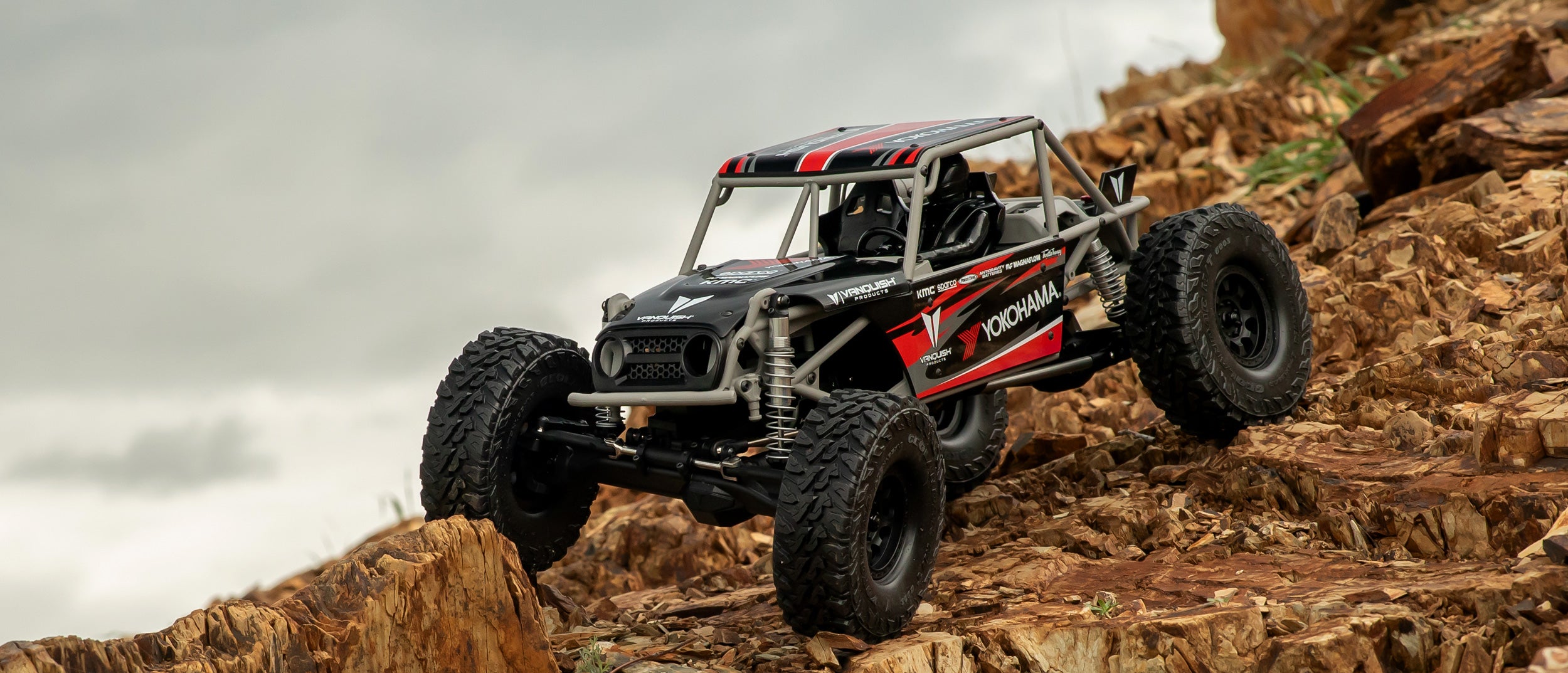

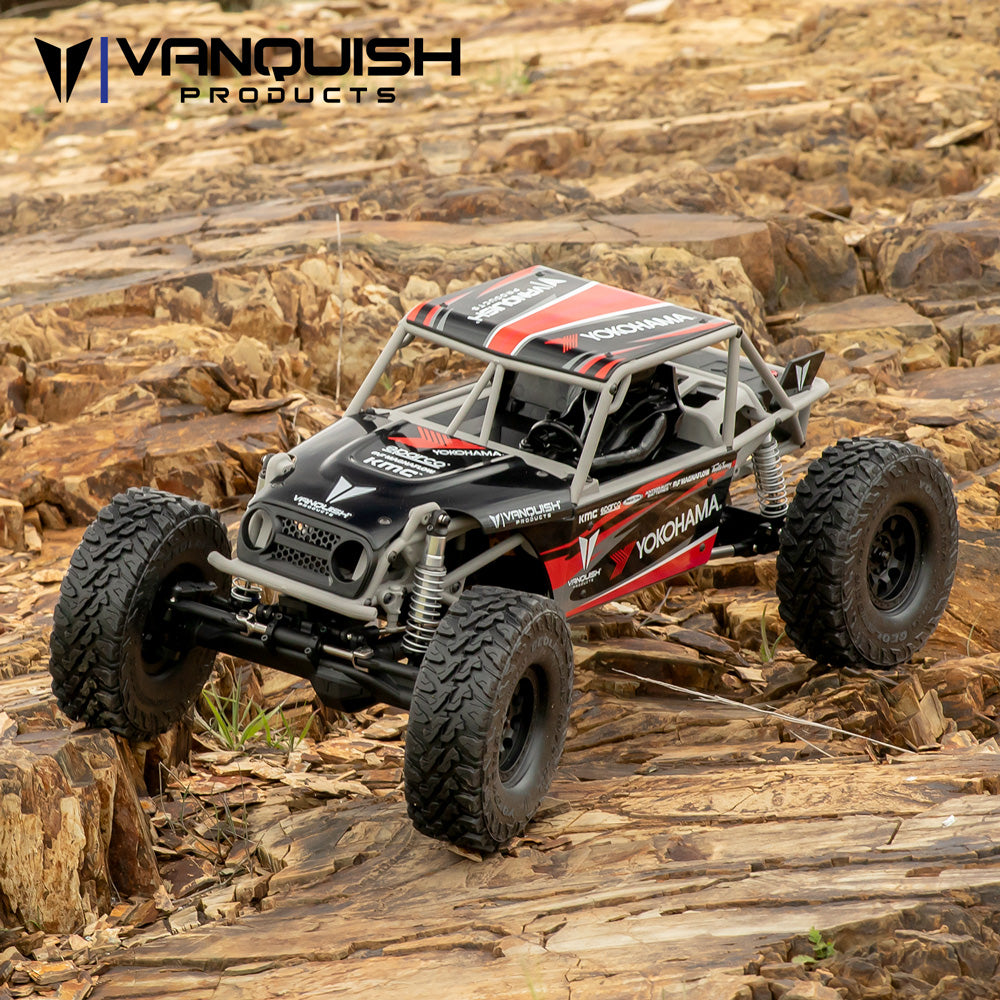

H10 OPTIC YOKOHAMA RTR
H10 OPTIC YOKOHAMA RTR
SKU: VPS09010A
-
TRAIL
PURPOSE BUILT BUGGY
H10 AXLES
HYDRO STEERING*
OPTIC BODY
MOLDED ABS HARDBODY
1.9" WHEELS
4.75" RED COMPOUND TIRES

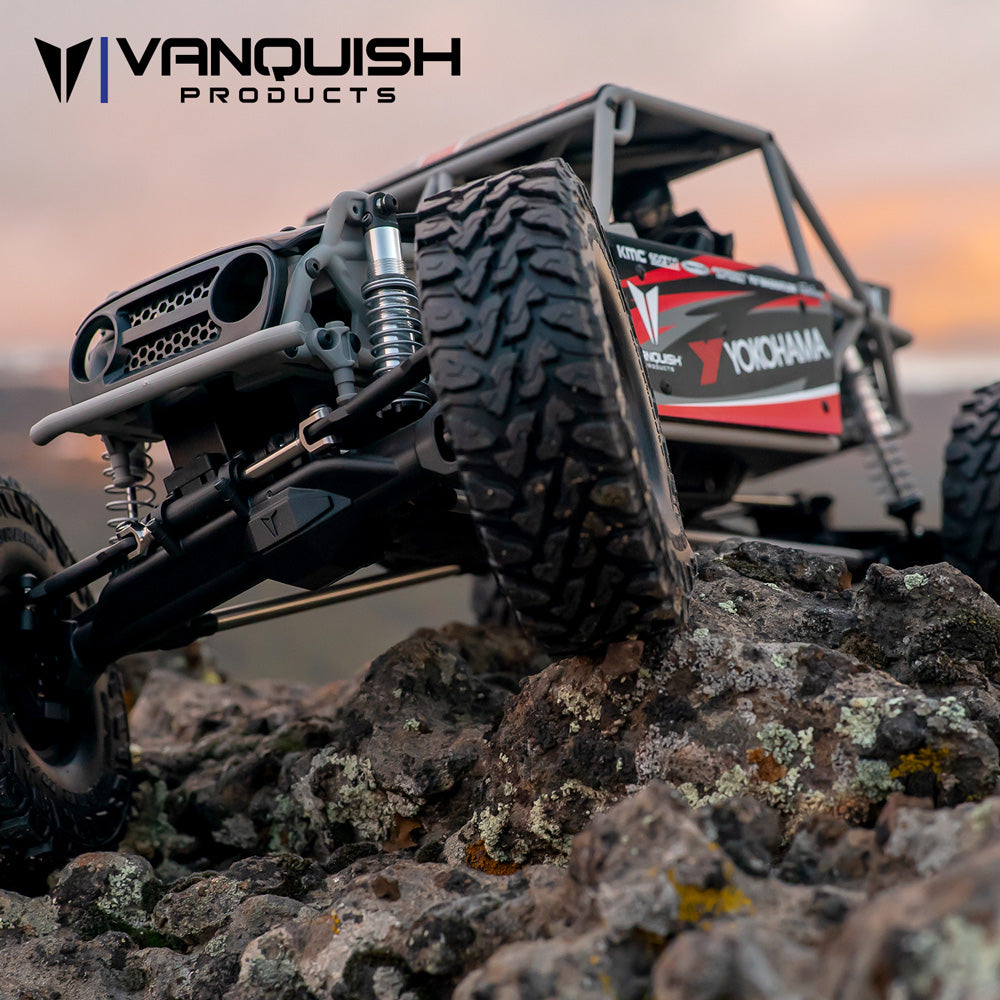

H10 HYDRO FRONT AXLE
Scale appearance meets performance with the new H10 Hydro Front Axle steering system. Developed to simulate a double ended hydraulic ram steering system used in off-road rigs. Utilizing a standard steering servo hidden behind the axle, the steering system is isolated from the chassis. The H10 Hydro front axle uses a 3pc ram that is protected and moved away from obstacles. The width of the H10 axle is increased by 0.600" compared to the F10 for even greater stability.
H10 HYDRO STEERING HIGHLIGHTS
4-LINK WITH AXLE MOUNTED SERVO
The Hyrdo ram replaces a traditional tie rod and the steering servo is hidden behind the axle. All new H10 steering knuckles allow for the steering drag link to be protected and out of sight. The Hyrdo front axle includes VDI universal axle shafts for 47° of steering angle.
INTEGRATED STEERING SKID PLATE
The ram housing is secured by assembling it between the housing and servo mount, clamps on the ram housing add additional scale appearance. The axle housing has integrated C's, front lower skid plate truss and a removable 3rd member.

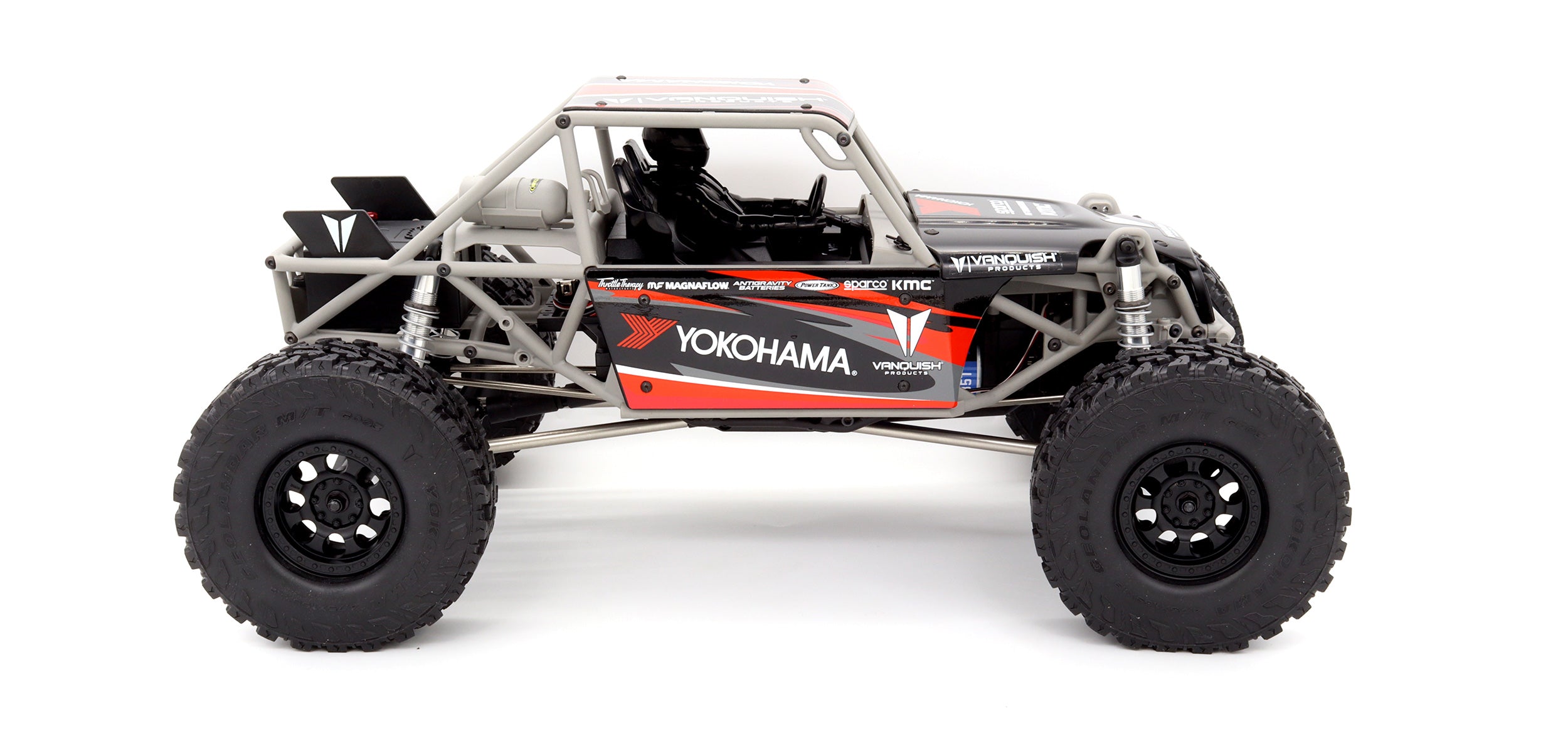

DETAILED MOLDED TUBE CHASSIS
H10 CHASSIS DETAILS
The styling of the H10 chassis is derived from Trail Buggy’s built to tackle the world's toughest terrain in comfort and style. The 2-seat symmetrical design preserves a narrow overall width for easy navigation around obstacles. Short front and rear overhangs optimize approach and departure, allowing tires to hit obstacles first.
BATTERY COMPARTMENT SIZE: 93MM X 36MM X 42MM
SECURE BATTERY ACCESS
The access to your battery compartments couldn't be easier with a single pin and latch system holding each side panel on to gain quick access on the trail.
H10 MOLDED CAGE AND OPTIC ABS HARD BODY
YOKOHAMA OFFICIALLY LICENSED
Founded in 1917 Yokohama Tire Corporation opened its first US office in 1969. With the belief that motorsports is the ultimate test of performance, innovation and durability. Everything we learn while competing under grueling race conditions leads to better performing, longer lasting tires for the track, street, and offroad. Dedication. Toughness. Ability. Performance. The qualities that go into everything we do, make us who we are. ‘GO STRONG’ is more than just a tagline, it’s the underlying philosophy that supports the Yokohama way of life. The Yokohama Geolandar brand has proven itself in the offroad industry and Vanquish Products H10 Optic RTR is proud to run the Geolandar M/T. #TeamYokohama
H10 OPTIC DRIVETRAIN
VFD TRANSMISSION
The center of the H10 Optic RTR is the proven VFD transmission equipped with 6% overdrive. Providing a low and forward motor position with a protective skid plate along the front of the skid plate.
OVERDRIVE TRANSFER CASE
Full ball bearing and metal gears provide strength and longevity for worry free performance.
H10 HYDRO FRONT AXLE
Front and Rear H10 axles are 0.600" wider than F10 Straight axles and built around the proven 30/8T Hypoid ring and pinion gear set.
UNIVERSAL JOINT AXLE SHAFTS
VDI Front axle shafts are 0.600" Wider than F10 Straight axles and provide 47° of steering angle.
YOKOHAMA GEOLANDAR M/T 4.75" RED COMPOUND TIRE
Our proven sticky RED compound allows you to tackle any terrain with these officially licensed Yokohama Geolandar M/T 4.75" tall tires. The aggressive tread pattern offers excellent performance right out of the package.
LICENSED SPARCO RACING INTERIOR
HIGHLY DETAILED 3D INTERIOR
Molded ABS Interior with scale driver and uses several Licensed Sparco designs
Air Pro RF-5W Helmet
Land+ Gloves
EVO L QRT
Competition Race Suit
Racing Harness
H10 OPTIC ELECTRONICS
VT-1
4 Channel digital transmitter with multi model memory gives you the freedom to customize your Optic without having the change the radio.
VE-1
Built by Hobbywing for Vanquish Products, the 1060 ESC is dependable and waterproof.
VM-1
35t Brushed motor provides efficient and smooth power for the trails.
